3D printer 32bit Arm platform Smooth control board MKS SBASE

V1.3 +MKS TFT32 3.2” LCD Touch Display

MKS SBASE V1.3

Overview

MKS SBASE is a latest motherboard for 3D Printer ,designed by Makserbase (MKS).

It is based on ARM platform and uses 32bit 100M Cortex-MS MCU-LPC1768.

Features

1. Using 32bit 100M Cortex-M3 MCU-LPC 1768, and improve its performance highly.

2. Support highly modular open source firmware , easy for secondary development.

3. Support network function, then proceed remote control via IE Explorer.

4. Using DRV8825 stepper driver which supports 32-microstep and with excellent cooling.

5. Currents of the stepper motor can be set directly, which can avoid the damage .

6. Using high quality FR-4 4 layers PCB and special design for cooling.

7. Using professional power chip, support 12V-24V DC input.

8. Good to work with MKS LCD12864 and MKS TFT touch screen.If you use the other 12864 we can’t sure it can work .

(Can’t work with MKS MINI12864LCD,OLED12864 and LCD2004 display.)

Wiring

Wiring is based on available information.

MKS SBASE and MKS TFT Touch Screen

How to use

1.Copy “firmware.bin” and “config” from config file to SD card (SD smaller than 64Gb)
. Need to change config name .

For example:

Change into .

2. Adjust config.txt according to the configuration .

3.Refer to MKS-SBASE PIN , make correction connection. Such as stepper motor ,endstops.

4.Plug the SD card to the board, after power on, it will automatic update .

5.If connect computer with USB, need to install the driver (Refer to below specification ).

Install the Driver

First, you should upload the zip file.

Then, plug the USB to computer . Next, enter device manger .

Then will turn up COM after install successfully.

Download Firmware and Update

Please upload firmware (please contact us to receive the firmware link )

Copy configuration (including firmware.bin and config.txt) to SD card, insert to the board and power on, it will automatic update .

After successful updated, the file name will turn into firmware.cur.

Others

1.Support Gcode. Please refer to <help>G-Codes.htm .

2.Main parameter setting

It is very easy to set the parameter . First, open config.txt on SD card, then modify the parameters and save. Re-power on.

Details on parameter, please refer to Configuration_Options.

MKS TFT32 3.2” LCD Display User Manual: If you need software support or other firmware support, please contact customer service

MKS-TFT32 is a colorful touch screen LCD, it is suitable for many main board, such as MKS BASE, MKS GEN, MKS MINI, MKS SBASE, etc.
Don’t like MKS TFT28, MKS TFT32 do not support external power supply, can’t work with Ramps1.4.

Connect to MKS BASE,MKS MINI

Boot Setting
Step1: turn on MKS TFT32 at first time, then enter –> setting –> connection, select baud rate that the firmware use.
Step2: enter –> setting –>model, choose printer type, only Delta and other two options
Others: enter –> setting –> touch screen correction, improving accuracy.

Firmware Update
Copy the latest update firmware to SD card root directory, including:
1. mkstft32.bin.
2. mks_config.txt.
3. mks_pic.
Please do not adjust the file name. Insert SD card, it will update automatically after restarts.

WIFI Connection
1. MKS TFT can support MKS WIFI module.
2. After MKS TFT works with MKS WIFI module, can use Printrun, Repetier-Host to proceed remote connect and control. But it may make some functions unavailable.
mks_config.txt basic configuration
1. Configuration on single and double nozzle : change the value after the colon of “cfg_sprayer_counter” into the nozzle you need.(“1”is single nozzle; “2” is double nozzle )
2. Heated bed configuration: change value after the colon of “cfg_custom_bed_flag” into custom requirements you need.(“1” is with heated bed; “0” is without heat bed)

Package include:

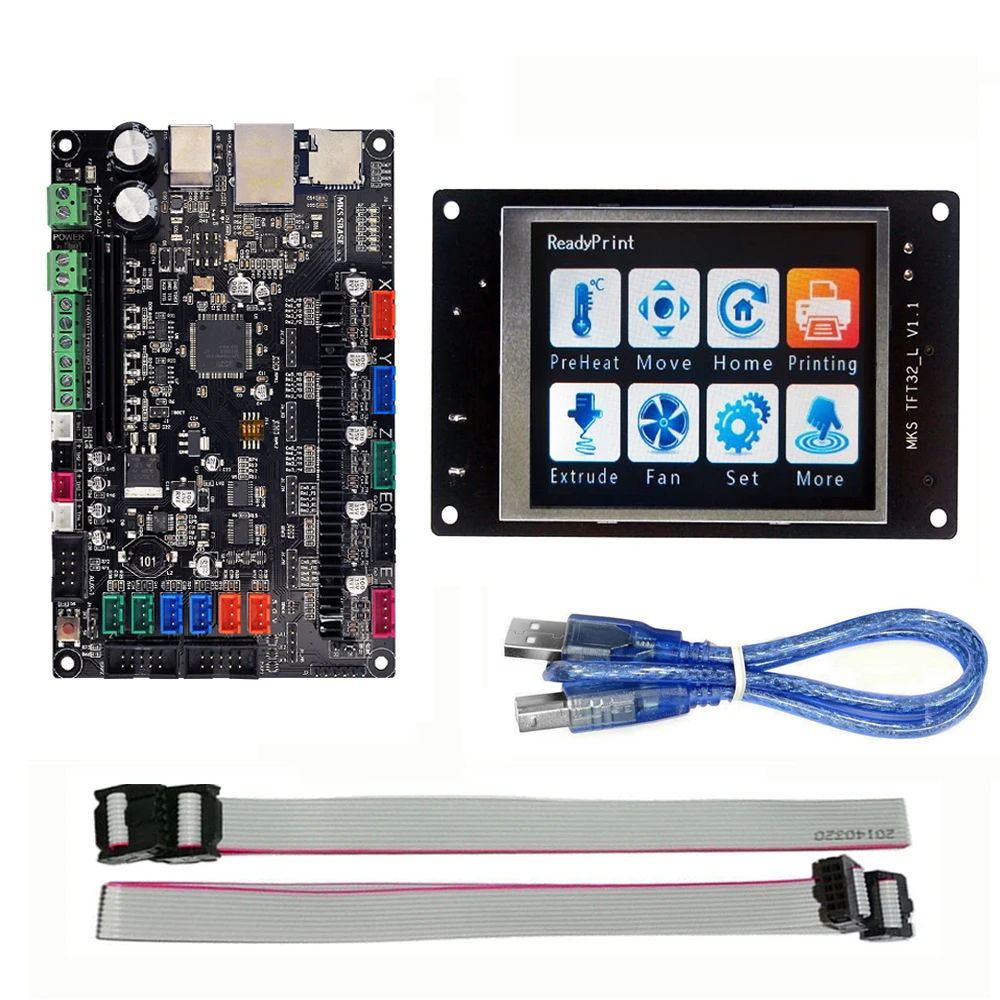

1 x MKS TFT32 3.2” LCD Display 1 x MKS SBASE board 2 x Cable 1 x USB cable ​
